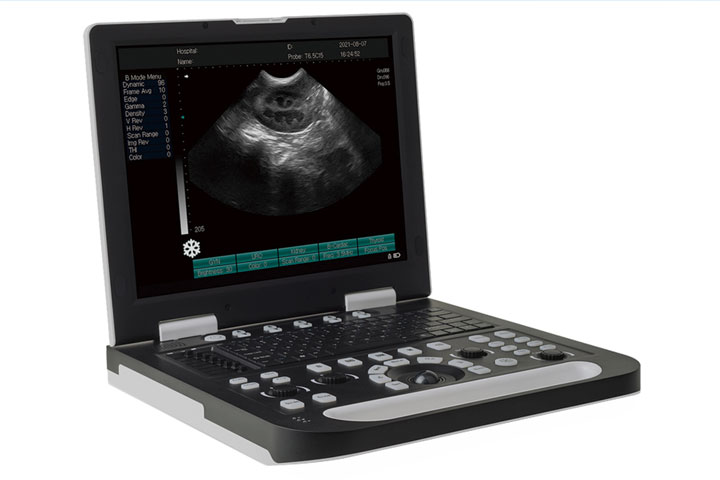

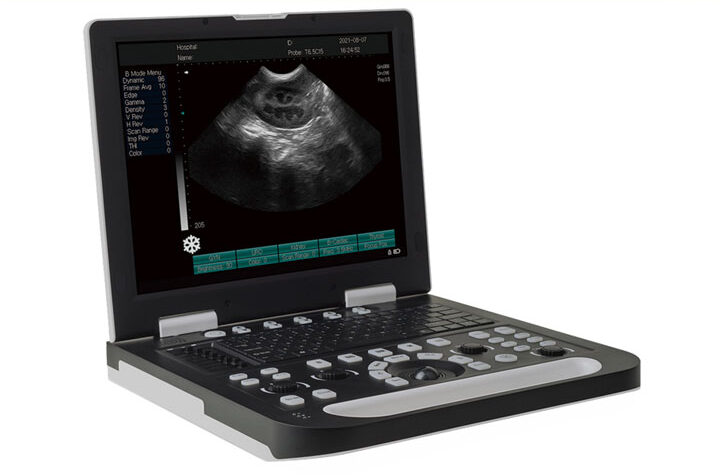

Uchungechunge lwe-BN100I-Ultrasound emnyama nemhlopheumshini ovela eChinaHSVETyenza ukulinganisa kokubelethisa, ukulinganisa kwenhliziyo, kanye nokubala kwesilinganiso senyama engenawo amandla, okuhlanganisa izilwane ezi-6 ezivame kakhulu ezihlanganisa izingulube, izimvu, izinkomo, amahhashi, izinja, namakati, ngakho-ke, okokusebenza kufanele kokubili izibhedlela zezilwane ezifuywayo kanye namapulazi emfuyo.
- Ukuhlolwa kwezokwelapha kanye nokuxilongwa kwezilonda ezicutshini nasezithweni (isibindi, i-gallbladder, i-spleen, izinso, isinye, isibeletho, njll.) nakho kungenziwa ezilwaneni ezincane neziphakathi njengezinja namakati.
- Ukuhlolwa kokukhulelwa nokuqina kwe-backfat kwenziwa ikakhulukazi ezilwaneni ezinkulu njengezinkomo, izimvu, amahhashi nezingulube.

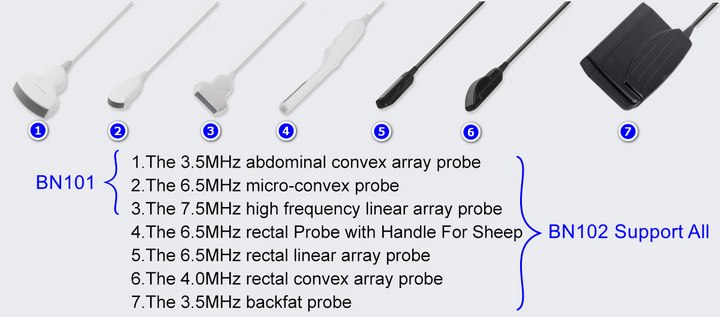

2 amamodeli ancike ohlotsheni lophenyo olusekelwayo
- I-BN101
- Intengo: kusuka ku-$ 1450
- Isekela izinhlobo ezi-3 zama-probe
- 3.5Mhz i-convex probe
- I-6.5Mhz i-micro convex probe
- I-7.5Mhz yomugqa wokuhlola
- –
- –
- –
- –
- Intengo: kusuka ku-$ 1450
- Buza Manje!
- I-BN102
- Inani: kusuka ku-$ 2000
- Isekela 7 izinhlobo probes
- 3.5Mhz i-convex probe
- I-6.5Mhz i-micro convex probe
- I-7.5Mhz yomugqa wokuhlola
- 6.5Mhz izimvu eziphethe isibambo
- 6.5MHz umugqa womugqa ongunxandeprobe ukusetshenziswa kwezilwane
- 4.0MHz i-rectal convex array probe yokusetshenziswa kwezilwane
- 3.5MHz i-backfat probe
- Inani: kusuka ku-$ 2000
- Buza Manje!
Izici

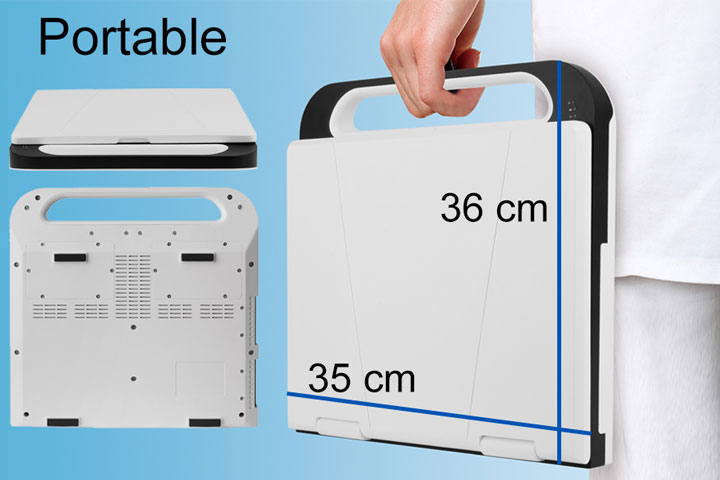

- Isitayela se-laptop, Usayizi Ohlangene, 36 * 35 * 6.5 cm, 4.2 kgs isisindo senethi

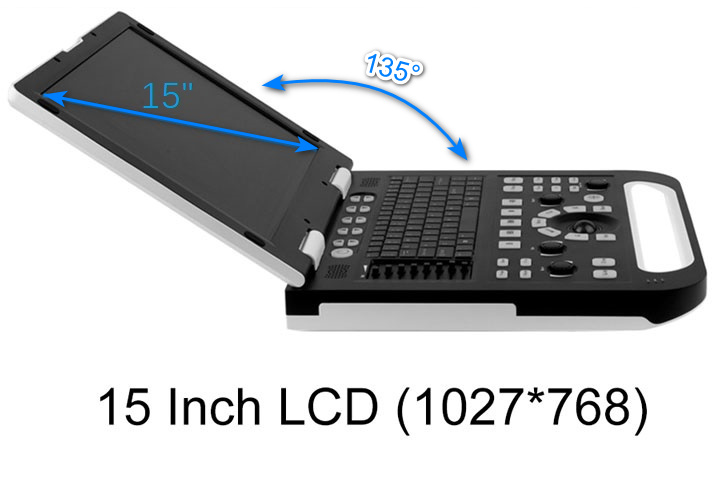

- Isikrini se-LCD esingu-15 intshi, 1024 * 768 dpi, sishumekiwe, Ukwembuleka okuphezulu okungu-135 degrees.

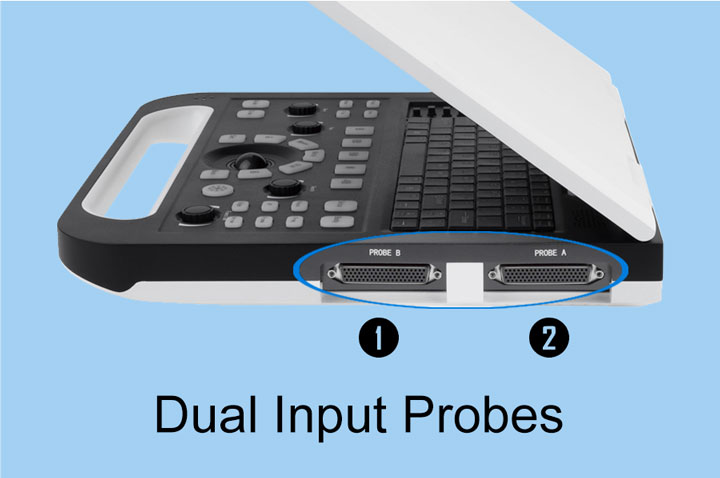

- Izimbobo zokuhlola ezikabili, kanye ne-transducer evumelana nezimo

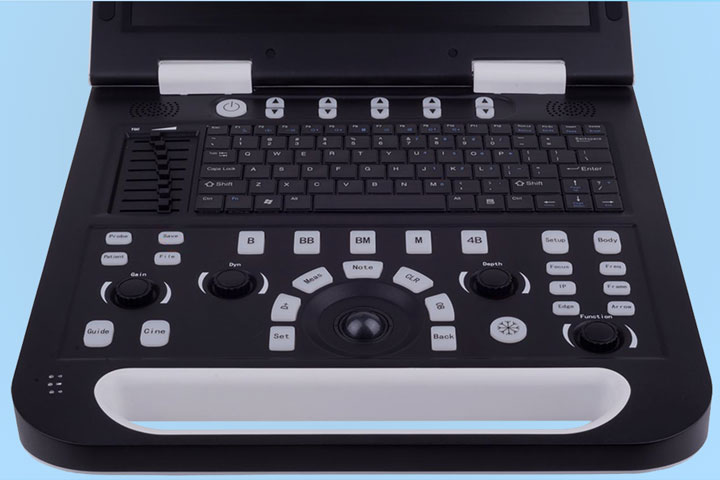

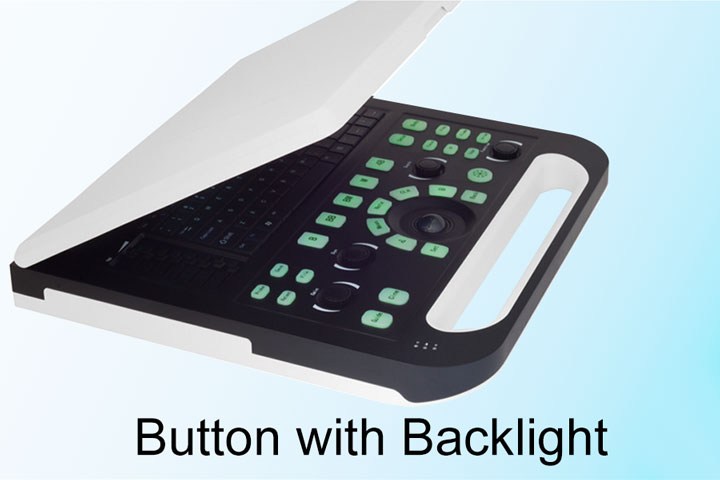

- Izinkinobho Zemisebenzi eminingi enokukhanya kwangemuva, kulula ukuzibona ngisho nasegunjini elingenazo izibani
- Ikhibhodi ye-QWER enosayizi ogcwele

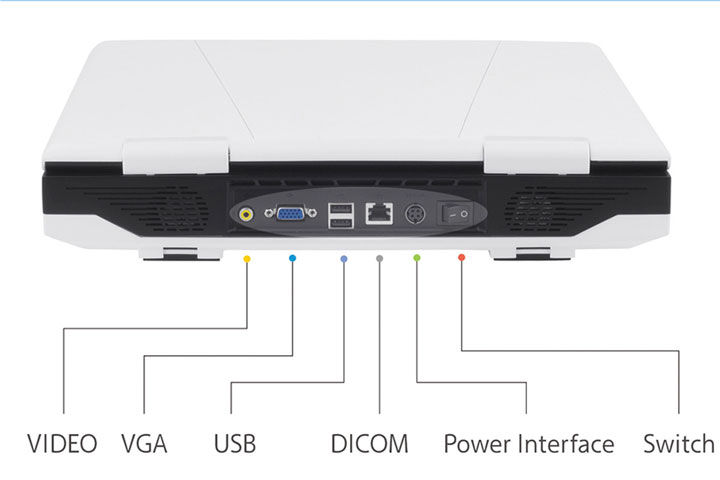

- Izimbobo zokuphumayo:
- 1 * Okukhipha ividiyo
- 1 * VGA,
- 2 * I-USB 2.0
- 1 * Ifomethi ye-DICOM
- 1 * Okokufaka kwamandla
- 1 * Inkinobho yokuvula/yokuvala
- I-ARM CPU iletha isivinini esisheshayo
- I-32G Indawo yokugcina eyakhelwe ngaphakathi, Cishe ku-16 G imahhala ngemva kokufaka isistimu nesofthiwe;

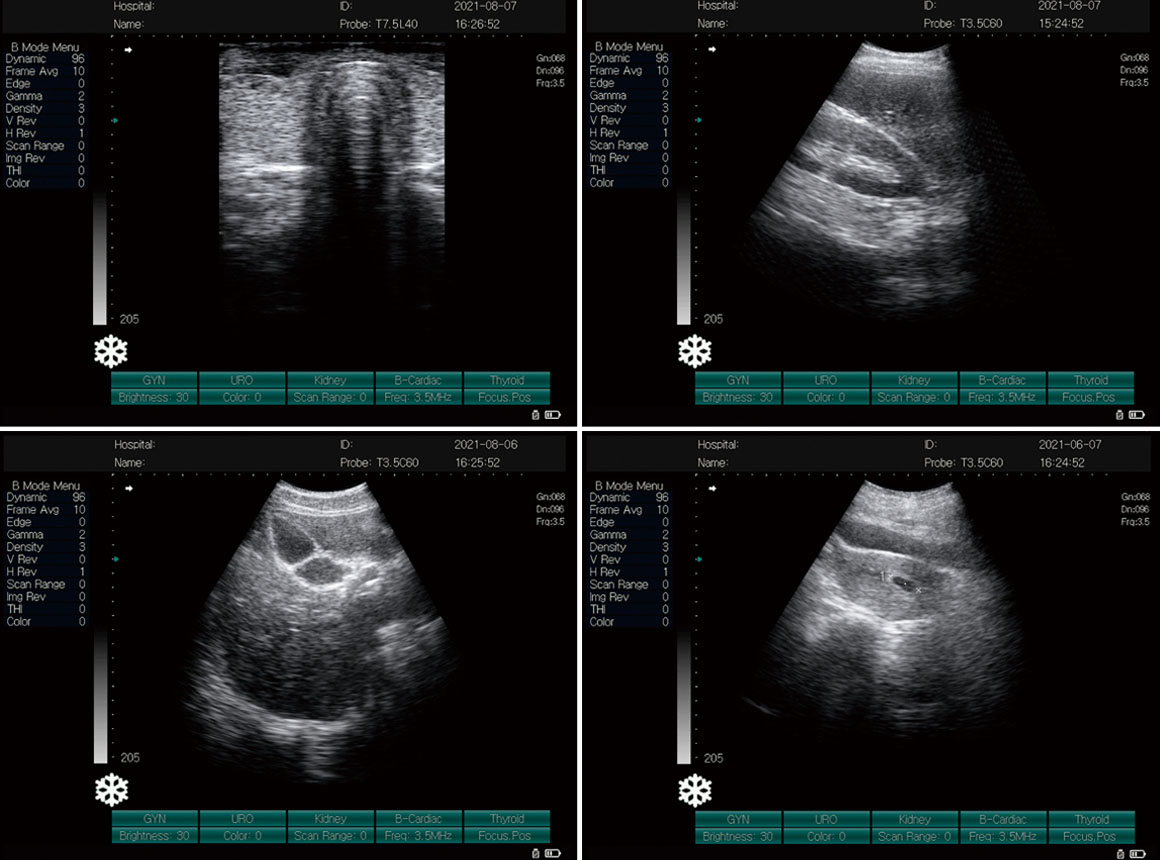

- Izindlela Ezinhlanu Zokubonisa Izithombe
Amapharamitha amaningi
I-Hardware
- I-Convex probe enezici ezingama-96, kanye ne-rectal probe enezici eziyi-128;
- Izilimi ezimbili: isiShayina nolunye lwesiNgisi, iSpanishi, isiRashiya, isiFulentshi nesiPutukezi.
- Iphrinta Yevidiyo: I-Mitsubishi ne-SONY
- Ibhethri ye-lithium eshumekiwe engu-6400 mAh, isebenza ngokuqhubekayo amahora angaphezu kwama-4.
- Iishaja yebhethri ye-laptop B-ultrasoundivumela okokufaka kusuka ku-100V kuya ku-240V okuguquguqukayo futhi kuphume 14V 3.0A.
- Ukupakisha Ubukhulu: 500 * 500 * 230 mm
- Isisindo esiphelele: 7.5KG
Amanye Amapharamitha
- Iziteshi eziyi-16
- Ukudlala ividiyo 256 FPS
- 256 greyscale,
- I-Dynamic Range isuka ku-0 iye ku-135 dB
- Thola Ibanga ukusuka ku-0 kuye ku-100 dB
- indawo yesichasiselo engaphezu kwama-98
- Indawo eyimpumputhe ingaphansi kuka-4 mm
- I-Max detect Depth ingu-300 mm
- Izinhlobo eziyi-16 zokukhuliswa zingakhethwa ukwenza ukuxilongwa kwezilonda kunembe kakhudlwana
- Ukunemba kwejiyomethri: okuvundlile ≤5%, ubude ≤5%
- Ukulungiswa: okungemuva ≤ 2mm, i-axial ≤ 1mm
Imisebenzi
- I-Image Rotary ne-Flip Reverse kanye ne-B/W Switch;
- Inikeza amaphakheji esoftware yokulinganisa amakhono ezokwelapha afana ne-gynecology, urology, izinso, i-thyroid, njll.
- Umhlahlandlela wokubhoboza
- ukubeka lithotripsy
- IhlinzekaIsikali segridi nesikali sechashazi
- Umbhalo Nohlamvu:
- Idethi nesikhathi
- Igama Lesiguli, Ubulili, Iminyaka
- Igama likaDokotela,
- Igama Lesibhedlela
- Izichasiselo (esikrinini esigcwele)
- Ukucutshungulwa kwangaphambili kwesithombe:
- imbobo eguquguqukayo,
- ukulandelela okunamandla,
- ukuhlunga kwedijithali okunamandla
- Ukucutshungulwa kwesithombe
- 8 umbala mbumbulu
- 8 izinhlobo zokulungiswa,
- ukuhambisana komugqa,
- 16 level ukuhlobana kozimele,
- ukuhlobana kwephuzu nomugqa,
- ukuhumusha ngomugqa,
- ukuhlunga kwe-digital space-time,
- ukuthuthukiswa komphetho wedijithali
