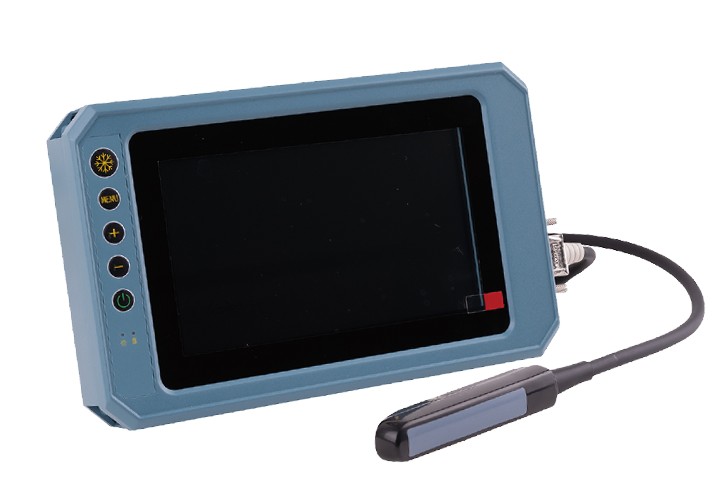

Ngesikrini sokuthinta esingu-7 intshi, le divayisi yohlobo lwe-B yokuskena ye-ultrasound evela e-ChinaHSVETukutholwa kwezokwelapha nokukhulelwa kwamakati, izinja, nezinye izilwane ezifuywayo. Iqukethe izinto ezilandelayo:
- 1 ucezuUmsingathi we-Ultrasonic Scanner
- 1 ucezu6.5MHz umugqa womugqa ongunxandei-transducer
- 1 ucezuI-adaptha yamandla/ Ishaja yebhethri
- 1 ucezuipotimende elingangeni manzi
- 1 UcezuIbhande Lehlombe kanye nama-Len hoods
- 1 ucezu lwe-Paper User Manual ngesiNgisi
Izici
I-Hardware
- I-ABS Shell yenza umsingathi angasindi kube ngu-0.86 KG kuphela, nosayizi omncane (236 * 148 * 42 mm) ophatheka kalula.
- Isikrini sokuthinta esingu-7 intshi, 15.5 * 9 cm (W*H), 800 * 600 dpi
- Ibhethri ye-lithium eshumekiwe engu-2600 mah, isebenza ngokuqhubekayo amahora angaphezu kwama-3, enenketho yesikhathi sokuvala amandla e-auto.
- Imemori eyakhelwe ngaphakathi ye-32G nezithombe zingalondolozwa ku-USB flash disk noma ekhadini le-TF.
- UkusekelaIzinhlobo eziyisi-7 zama-transducer kagesi, okuzenzakalelayo nge-a6.5MHz umugqa womugqa ongunxandephenya
- Iishaja yebhethri ye-B-ultrasound ephathwayoivumela okokufaka kusuka ku-100V kuya ku-240V, okuguquguqukayo, kanye nokuphumayo okungu-14V no-3.0A.
- Akhona ama-Len hoods nebhande lehlombe
I-OS
- I-interface yomsebenzisi iyatholakala ngesiNgisi, iSpanishi, isiRashiya, isiFulentshi, nesiPutukezi
- ukusekela ukubuyisela izilungiselelo zasefekthri, Akudingekile ukhathazeke ngokulungiselelwa okungalungile.
- Ngaphandle kokuzungezisa isithombe, isixhumi esibonakalayo sesistimu singazungeziswa,
Isithombe Imisebenzi
- IsekelaIzindlela Ezinhlanu Zokubonisa Izithombe.
- Ukuzungezisa kwesithombe nokuhlehla kwesithombe kuyatholakala.
- Isikali segridi nesikali sephoyinti
- 16Imibala mbumbulu
- Sekela umsebenzi oyisisekelo/ojwayelekile, ohlanganisa izilinganiso zebanga, umjikelezo, indawo, ivolumu, ne-engeli, kodwa
- Sekela ukukala kwenhliziyo.
- Sekela ukukala kokubelethisa.
- Ngaphandle kokulinganisa i-backfat mathupha, iphinde inikeze ngerula egudlukayo ukusiza abasebenzisi bathole umphumela ngokushesha.Futhi isekela ukulinganisa okuzenzakalelayo kwe-backfat.
Amanye Amapharamitha
- amazinga amane electron focus
